Merge Sheets API Documentation

Merge Sheets API provides a powerful solution for merging data from multiple Google Sheets. Instead of manual VLOOKUP or INDEX/MATCH operations, you can automatically join spreadsheet data based on matching key columns. Seamlessly pull matching values or append non-matching rows to create a unified master table.

Authentication

Before performing merge operations, you must authorize the API via Google OAuth to access and modify your spreadsheets.

To authorize the API, follow these steps:

1. Open the following link in your browser and complete the Google login process:
   https://prapi.appscript.pro/api/v0/g/auth_api
2. After you complete the authorization, the service will generate a JWT Token.
   Note: The JWT Token is a secret credential that grants access to the user's session. It must be stored securely and never exposed in public repositories or client-side code.

All subsequent API calls require the JWT token to be passed in the Authorization header with the Bearer prefix:
Authorization: Bearer <YOUR_JWT_TOKEN>

Manage Google Connection:

To verify if the internal Google Refresh Token is valid and the service still has access to the user's spreadsheets:
GET https://prapi.appscript.pro/api/v0/user/0/

{
  "access_to_google_profile": true
}

To revoke the Google Refresh Token and disconnect the user from the service:
GET https://prapi.appscript.pro/api/v0/user/0/revoke-refresh-token

Execute Merge Task

To perform a merge operation, you must create a job. This endpoint starts the processing based on the provided JSON body.

HTTP Request: POST https://prapi.appscript.pro/api/v0/user/0/run

Headers:

• Content-Type: application/json
• Authorization: Bearer <YOUR_JWT_TOKEN>

Request Body:
The body must contain the tool, name, license, and payload fields:

Example request structure:

{
    "tool": 7,
    "name": "My Merge Scenario",
    "license": "YOUR_LICENSE_KEY",
    "payload": { ...configuration object... }
}

Response: This request returns a Job ID.

Check Job Status

Once a task is created, you can track its status using the Job ID returned by the execution request.

Endpoint: GET https://prapi.appscript.pro/api/v0/user/0/run/:jobId

The endpoint returns the current status of the job:

• pending: The job is queued and waiting to start.
• running: The job is currently being processed.
• successful: The job completed successfully.
• successful_with_mail: The job completed with warnings. The warning details have been sent to the registered email address.
• failed: The job failed to complete due to an error.

Scenario Schema

The Scenario schema defines the structure of the payload object required in the execution request. This object contains the main configuration for the merge operation, including the main sheet, lookup sheets, and merge rules.

Root Request Attributes

The main configuration object. It defines the entire merge operation: which sheets to use, how to match rows, and which columns to update.

Sheet Object

This object defines the specific location of data within Google Drive. It specifies the target file, the tab name, and the cell range to be processed.
Note: Used in oMainSheet and aLookupSheets

Merge Rules Object

This object defines the behavior of the merge operation, including matching logic, update conditions, and formatting options.
Note: Used in oMergeRules.

Column Naming Rules

When defining column names in aMatchingColumnsMapping and aUpdateValueMapping, follow these rules depending on your configuration.

1. If headers are not present

   If you set "bMainHasHeaders": false or "bLookupHasHeaders": false, you cannot use text names. Instead, refer to columns using the "Column + Letter" format, such as: "Column A", "Column B", "Column C", etc.

   Example Copy

   "aUpdateValueMapping": [
   [
       "Column A",
       "Column A"
   ], [
       "Column B",
       "Column D"
   ]]

2. If tables have headers

   If headers are present ("bMainHasHeaders": false or "bLookupHasHeaders": false), the following rules apply:

   Case insensitivity: Column names are not case-sensitive (e.g., "KeY" is treated the same as "key").

   Whitespace trimming: Leading and trailing spaces are ignored (e.g., " key " is read as "key").

   Maximum length: Header names are limited to 28 characters.

   Duplicate headers: If your sheet contains multiple columns with the exact same name, map the 2nd or subsequent duplicate column using the format:

   \u00A0 + (N) + Space + Header name

   Where:

   • \u00A0 is a unicode non-breaking space.
   • (N) is the ordinal number (starting from 2).
   • Space is a standard space.
   • Header name is the actual name of the header.

   Three columns named "Price" will appear as: "Price", "\u00A0(2) Price", "\u00A0(3) Price".

   In your JSON configuration, it will look like this:

   JSON Copy

   "aUpdateValueMapping": [
   [
     "Price",
     "Price"
   ], [
     "\u00A0(2) Price",
     "\u00A0(2) Price"
   ]],

Request Body Example

Below is a complete JSON configuration example:

{
    "tool": 7,
    "name": "My Merge Scenario",
    "license": "YOUR_LICENSE_KEY",
    "payload": {
        "oMergeRules": {
            "bIsMasterSheetBackupRequired": false,
            "sSpreadsheetId": "",
            "bMainHasHeaders": true,
            "bLookupHasHeaders": true,
            "bIgnoreBlanks": false,
            "bMatchCase": false,
            "bAddNonMatchingRows": true,
            "bAddStatusColumn": false,
            "bUpdateEmptyCells": false,
            "bUpdateIfLookupCellsContainData": false,
            "bPlaceResultToMainTable": false,
            "bPlaceResultToNewSpreadsheet": true,
            "bMergeNotes": true,
            "bInsertAdditionalRowsAtEnd": true,
            "bInsertAdditionalRowsAfterMainRow": false,
            "bClearBackgroundColor": false,
            "bUpdatedCellsSetBackgroundColor": false,
            "sUpdatedCellsBackgroundColor": "#6fa8dc",
            "bUpdateValuesInActionRequired": false
        },
        "oMainSheet": {
            "sSpreadsheetName": "Bookstore_Inventory",
            "sSpreadsheetId": "1Sfpqweb4r5f73q04867fgqw90364fg946wqfowefuhk",
            "sSheetName": "Master_List",
            "sA1Notation": "namedrange"
        },
        "aLookupSheets": [
            {
                "sSheetName": "Vendor_Updates",
                "sSpreadsheetId": "1sdfkwn34scrt843r19x4asdf23fn23asdfufg",
                "sSpreadsheetName": "Vendor_List_Q1",
                "sA1Notation": ">SC_ADR3<"
            },
            {
                "sSheetName": "Daily_Sales",
                "sSpreadsheetId": "1enfvowiu54yc4c5908y34059vyt340h7g734M",
                "sSpreadsheetName": "Sales_Report",
                "sA1Notation": "A1:C200"
            }
        ],
        "aMatchingColumnsMapping": [
            [
                "ISBN",
                "ISBN"
            ]
        ],
        "aUpdateValueMapping": [
            [
                "Price",
                "New_Price"
            ],
            [
                "Stock_Qty",
                "Current_Stock"
            ]
        ],
        "aAddToEndList": [
            "Author",
            "Category"
        ],
        "sScenarioName": "Update Inventory: Prices & Stock",
        "migrateVersion": 2
    }
}

How to generate your JSON configuration object automatically

Don't want to write JSON from scratch? You can use the visual Merge Sheets add-on as a "code generator."

To get the JSON payload (configuration object) for your merge settings, follow these steps:

1. Download and install the Merge Sheets add-on from the Google Workspace Marketplace.
2. Open the add-on, set up the settings in five simple steps using the visual interface.
   Tip: Learn how to use the add-on on the help page.
3. Run the merge.

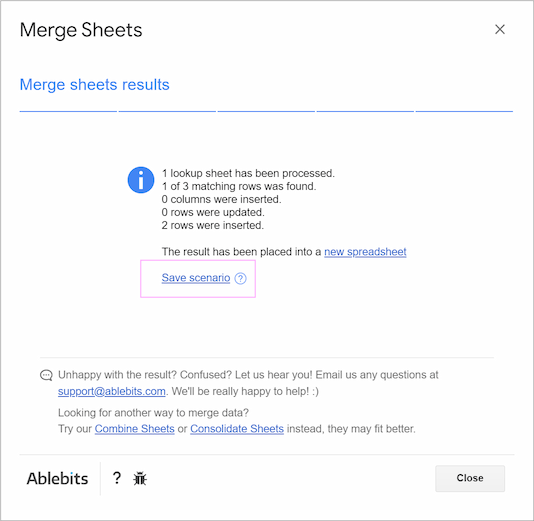

4. Once the add-on processes your data successfully, save your settings as a scenario by clicking Save scenario in the result message.

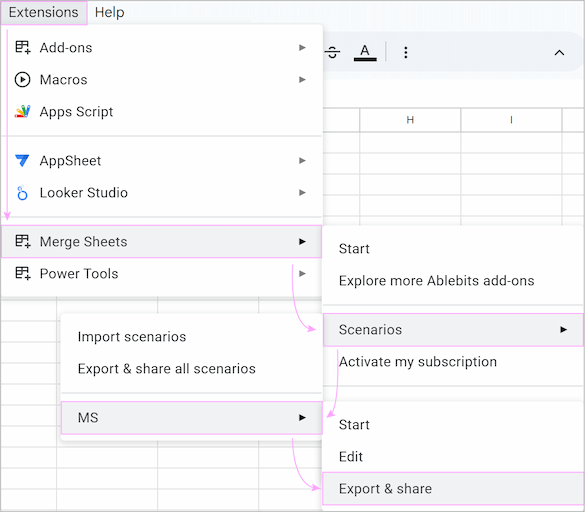

5. Go to Extensions > Merge Sheets > Scenarios, select your saved scenario, and click Export & share.

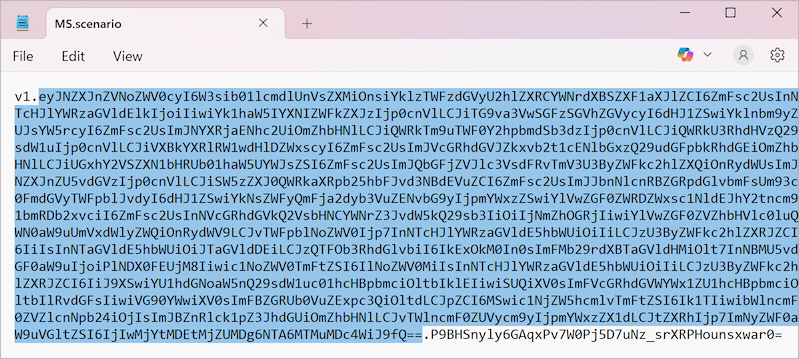

6. Once your browser downloads the file, open it in any text editor. You will see a long string with two dots:
7. Copy only the middle part - the text between the first and the last dot.
   eyJNZXJnZVNoZWV0cyI6W3sib01lcmdlUnVs……UMDg6NTA6MTMuMDc4WiJ9fQ==
   Note: The first dot is usually the 3rd character, and the last dot is near the very end.

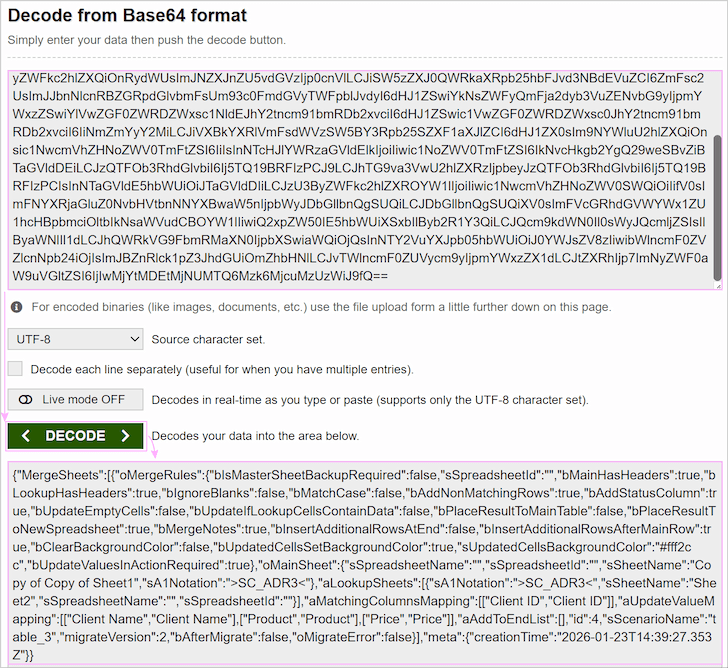

8. Open any Base64 decoder (such as base64decode.org). Paste this string into the upper field, press Decode, and copy the result from the lower field.

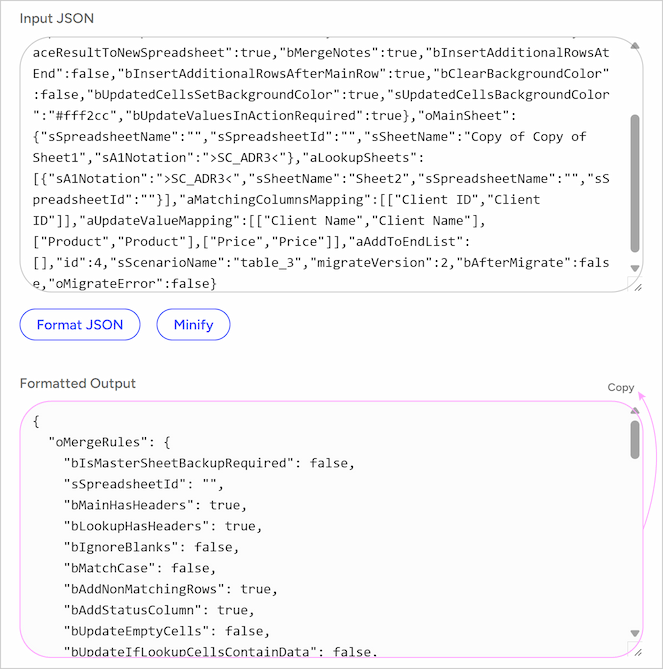

9. (Optional) Use a tool like JSON Formatter or the Notepad++ JSON plugin to format the output clearly.
10. The decoded result includes a root object {"MergeSheets": [...] and metadata that the API does not need. You only need the configuration object located between the square brackets. Copy your code without the outer wrapper properties, excluding the square brackets themselves:
    {"MergeSheets": [ {COPY THIS PART} ] ,"meta":{"creationTime":"2026-01-23T14:39:27.353Z"}}
11. Look at the oMainSheet and aLookupSheets objects in your JSON. Since the add-on works with the active spreadsheet, the export often leaves the sSpreadsheetId field there empty. You must manually paste the correct Spreadsheet ID into these fields, otherwise the API will not know which file to process.

You now have a perfect configuration object (payload) ready for the API!
